Tertiary Air Hose Swing Support Technology

Release Time:06/23/2020

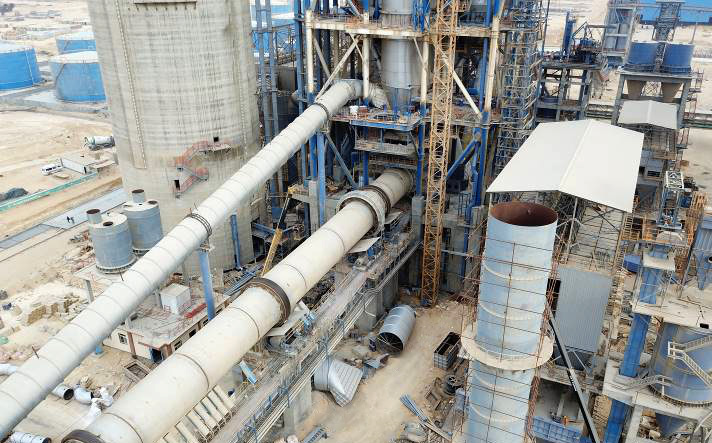

This technology uses the swing support to replace the traditional sliding support as the middle support in the tertiary air hose support system. It has stronger adaptability to the installation Angle deviation, which makes the field installation more convenient. The sliding sealing device instead of expansion joint is used to compensate the expansion amount, which shall save the manufacturing cost and maintenance cost and  improve the reliability. The two ends of the middle bracket adopt the hinge structure of two-force rods, which can optimize the structure force and avoid the bending moment of the bottom foundation, simplify the civil construction foundation, save the engineering investment and make it simple and beautiful.
